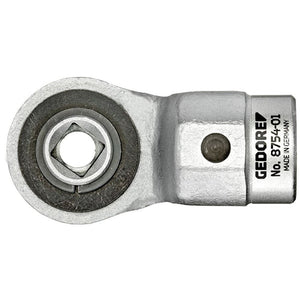

GEDORE socket ratchet 16 teeth - 3/8"

Original price 154.- - Original price 154.-
Original price
154.-
154.- - 154.-
Current price 154.-
For solving difficult assembly problems, easily replaceable
Forged
Chromium-vanadium steel
Matt chrome plated
With pin lock
Maximum continuous load capacity of the connecting square according to DIN EN ISO 6789:2003 or maximum load of the receptacle.
  • Drive mount, pin diameter: 16 mm
  • Drive type/drive: Through-square
  • Drive square [metric]: 10 mm
  • Drive square [inch]: 3/8 inch
  • Continuous load capacity: 3/8" = 135 N·m
  • Contents (number of pieces): 1 pc.
  • Material: chrome vanadium steel
  • Net weight [g]: 170 g
  • Net weight [kg]: 0.17 kg
  • REACH registration: No
  • Swivel angle: 10°
  • Pitch [metric]: 32 mm
  • Country of origin: Germany
  • Customs tariff number: 82079099

Technical data

name Value
Drive square (inch) 3/8
brand GEDORE
type 8754-01
Ø Pin (mm) 16
×
