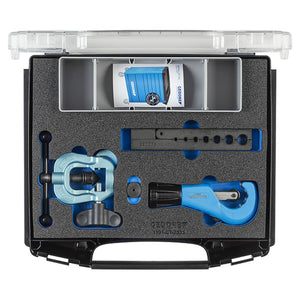

GEDORE boerdex 4-14 mm tool set in i-BOXX 72

For flaring copper and light metal pipes of various material hardnesses
For cooling systems, refrigeration technology
Zinc die-cast body
Painted blue
Flared cone 90° hardened = 45° angle from the pipe
With pressure piece for 180° = 90° bending of the pipe
Clamping jaws made of steel, smooth inside, phosphated
Complete set for metric as well as metric and imperial pipes
With pipe cutter 3-35 mm Ø
In GEDORE i-BOXX® 72 No. 1101 L
Dimensions: W 367 x D 316 x H 72 mm
Flaring tools for brake line pipes, see No. 1101-2340

• Flanging: metric
• For crimping according to DIN 74234: No
• Overall width [mm]: 367 mm
• Overall height [mm]: 72 mm
• Total length [mm]: 316 mm
• Contents (number of pieces): 1 pc.
• Material: Zinc die-cast
• Net weight [g]: 2890 g
• Net weight [kg]: 2.89 kg
• REACH registration: No
• Parts list (text): for metric tubes 4, 4.75, 6, 8, 10, 12, 14 mm
  1 crimping body No. 233000
  1 clamping jaw 4-14 mm No. 233101
  1 pressure piece 180° No. 233200
  1 pipe cutter 3-35 mm Ø No. 2250 3
  1 GEDORE i-BOXX® 72 No. 1101 L
• Country of origin: Germany
• Customs tariff number: 82055980
