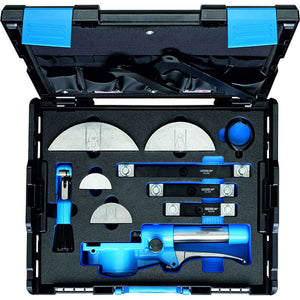

GEDORE Hydraulic Hand Pipe Bender Set 6-22 mm in L-BOXX 136

Dimensions from 6 to 22 mm Ø up to 90°
Soft copper pipes EN 1057 up to 22 mm (also thermally insulated)
Multilayer composite pipes up to 20 mm
Precision steel tubes EN 10305-3 (DIN 2394) up to 18 x 2 mm
Annealed stainless steel tubes up to 18 x 1.2 mm
Includes 10 bending dies for pipes with Ø 6, 8, 10, 12, 14, 15, 16, 18, 20 and 22 mm and corresponding counter-holders.
Hydraulic drive for low effort
In GEDORE L-BOXX® 136 No. 1100 L
Dimensions: W 442 x D 357 x H 151 mm

• Overall width [mm]: 442 mm
• Overall height [mm]: 151 mm
• Total length [mm]: 357 mm
• Contents (number of pieces): 1 pc.
• Net weight [g]: 9620 g
• Net weight [kg]: 9.62 kg
• REACH registration: No
• Parts list (text): 1 basic unit, hydraulic No. 245670
  10 aluminum bending dies
  for pipes with Ø 6, 8, 10, 12, 14, 15, 16, 18, 20, 22 mm
  1 counter holder Ø 6-12 mm
  2 reinforced counterholders Ø 14-17, 18-22 mm
  1 pipe cutter 3-35 mm Ø No. 2180 3
  + GEDORE L-BOXX® 136 No. 1100 L
• Country of origin: European Union
• Customs tariff number: 82055980
