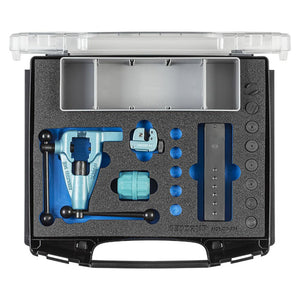

GEDORE Double Flaring Set 4.75-10 mm and 3/16"-3/8" in i-BOXX 72

For standard-compliant precision flares according to DIN 74234
For brake lines, hydraulic pipes, etc. with a wall thickness of 0.7 to 1.0 mm
Malleable cast iron body GTW 40
Painted blue
Complete set for metric as well as metric and imperial pipes
With pipe cutter 4-32 mm Ø and miniature pipe cutter 4-16 mm Ø
In GEDORE i-BOXX® 72 No. 1101 L
Dimensions: W 367 x D 316 x H 72 mm

• Flanging: metric & imperial
• For crimping according to DIN 74234: Yes
• Overall width [mm]: 367 mm
• Overall height [mm]: 72 mm
• Total length [mm]: 316 mm
• Contents (number of pieces): 1 pc.
• Net weight [g]: 4200 g
• Net weight [kg]: 4.2 kg
• REACH registration: No
• Bill of materials (text): 1 Base body No. 234000
  2 clamping jaws No. 234101 + 234102
  6 printing pieces 4.75-10 mm No. 234204-234210
  4 dies 3/16-3/8" No. 234303-234306
  3 setting gauges + pressure pieces No. 234790 + 234801-802
  1 miniature pipe cutter 4-16 mm Ø No. 231000
  1 pipe cutter 4-32 mm Ø No. 232001
  1 GEDORE i-BOXX® 72 No. 1101 L
• Country of origin: Germany
• Customs tariff number: 82055980
