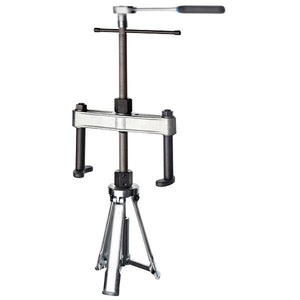

GEDORE cylinder liner extractor
Original price
112.-
-
Original price
112.-
Original price
112.-
112.-
-
112.-
Current price
112.-
This extractor can be used to remove wet cylinder liners from trucks (e.g., Mercedes Benz, MAN), cars, stationary engines, and other parts.
Method of operation:
Screw the spindle of the counter support into the clamping nut of the extractor and guide the extractor into the bushing. Place the counter support onto the cylinder block.
By turning the spindle, all three jaws spread quickly and easily under the rim of the bushing thanks to the innovative spreading system. Then tighten the nut of the counter support.
Method of operation:
Screw the spindle of the counter support into the clamping nut of the extractor and guide the extractor into the bushing. Place the counter support onto the cylinder block.
By turning the spindle, all three jaws spread quickly and easily under the rim of the bushing thanks to the innovative spreading system. Then tighten the nut of the counter support.
- Connection thread: G 1/2"
- Contents (number of pieces): 1 pc.
- Net weight [g]: 6800 g
- Net weight [kg]: 6.8 kg
- REACH registration: No
- Wrench size of operating hexagon: 36 mm
- Tensioning brackets available: No
- Spreading range (min./max.): 60 - 160 mm
- Reversible arms: No
- Country of origin: Germany
- Customs tariff number: 82055980
Technical data
| name | Value |
|---|---|
| Connection thread | G 1/2" |
| brand | GEDORE |
| Spreading range (mm) | 60 - 160 |
| SW Actuating Hex (mm) | 36 |
| type | 1.37/2 |
