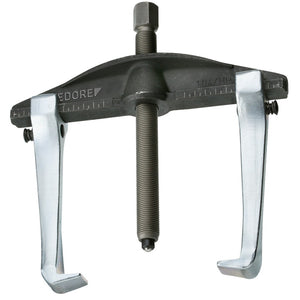

GEDORE Universal Puller HIGH POWER 2-arm, all-steel hook, hook brake 200x15
Original price
388.-
-
Original price
388.-
Original price
388.-
388.-
-
388.-
Current price
388.-
Specially tempered crossbeam, capable of withstanding double the tensile force, trigger hook forged from a single piece for a more precise fit, greater stability, and enhanced safety, with hook brake, adjustment scale for even adjustment of the trigger hooks, and can be retrofitted with a hydraulic spindle.
Hydraulic spindle present: No Retrofittable with hydraulic spindle: Yes
Hydraulic spindle present: No Retrofittable with hydraulic spindle: Yes
Technical data
| name | Value |
|---|---|
| 3D data available | No |
| 1000 V insulated | No |
| Anti-slip protection is present on the spindle. | No |
| Number of arms | 2 |
| Number of hooks | 2 |
| execution | 2-armed |
| Load on the entire puller (max.) [t] | 10 t |
| Hooks can be moved parallel to each other | Yes |
| Hook brake available | Yes |
| Hook foot width at usable surface c1 [mm] | 30 mm |
| Hook foot diameter at the tip e1 [mm] | 3.5 mm |
| Hook foot depth usable d2 [mm] | 24 mm |
| Hydraulic spindle optional | 1.06/HSP1 |
| Contents (number of pieces) | 1 |
| brand | GEDORE |
| Net weight [kg] | 3.4 kg |
| Wrench size Actuating hexagon | 22 mm |
| Quick-release levers available | No |
| Screws included | No |
| Scale divisions available | x |
| Tensioning bracket available | No |
| usable clamping depth b [mm] | 150 mm |
| Span of internal removal a2 (max.) [mm] | 260 mm |
| Span of internal skiving a2 (min.) [mm] | 110 mm |
| Spindle slip protection | No |
| Spindle mount | G1/2" |
| Spindle pressure piece type | Ball & tip |
| Spindle thread size | G1/2x210mm |
| Spindle thread length (usable) [mm] | 210 mm |
| Spindle surface coating | Nitrocarburized |
| Spindle wrench size | 22 mm |
| Replaceable spindle tip | Yes |
| type | 1.04/HP2A-B |
| Reversible arms available | Yes |
| Country of origin | Germany |
| VDE certified | No |
| Customs tariff number | 82055980 |
| Maximum tractive force [t] | 10 |
