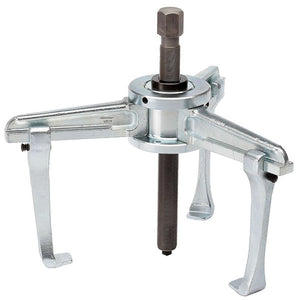

GEDORE Universal Puller, 3-arm, all-steel hook with hook brake 450x200 mm

Industrial quality, 3 arms for optimal load distribution, tip-proof and gentle on materials
Sturdy, ergonomically shaped crossbeam
Hooks forged while glowing hot in the die.
All-steel hooks positively connected to the crossbeam
With patented hook brake - quick adjustment and secure fixing of the hooks at the touch of a button.
Can be used as an internal puller by repositioning the hooks.
Nitrocarburized spindle surface, wear-resistant and corrosion-resistant
The spindle remains smooth and clean – no greasing or oiling necessary.
Traverse combinable with other spindle/hook designs and lengths from the GEDORE puller kit

• 3D data available: No
• Anti-slip protection on the spindle: No
• Number of arms: 3
• Total length [mm]: 137 mm
• Hooks can be moved parallel to each other: No
• Hook brake present: No
• Hook foot width at the usable surface c1 [mm]: 36 mm
• Hook foot diameter at the tip e1 [mm]: 6.5 mm
• Hook foot depth usable d2 [mm]: 28 mm
• Hydraulic spindle optional: 1.06/HSP3
• Hydraulic spindle present: No
• Contents (number of pieces): 1 pc.
• Retrofittable with hydraulic spindle: No
• Net weight [g]: 18800 g
• Net weight [kg]: 18.8 kg
• REACH registration: No
• Wrench size of operating hexagon: 36 mm
• Quick-release levers present: No
• Screws included: No
• Scale divisions available: No
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 200 mm
• Span for external skiving (max.) [mm]: 450 mm
• Span for external skiving (min.) [mm]: 150 mm
• Span of internal skiving a2 (max.) [mm]: 530 mm
• Span for internal skiving a2 (min.) [mm]: 270 mm
• Spindle slip protection: No
• Spindle thread size: G 1" x 360
• Reversible arms: No
• Country of origin: Germany
• Type of use: peeling inside and out
• Customs tariff number: 82055980
• Maximum tractive force [t]: 10 t
