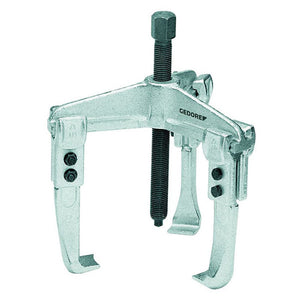

GEDORE Universal Puller 3-arm 250x200 mm

Secure hold and centered removal thanks to even load distribution across 3 pull-off hooks
Sturdy, ergonomically shaped crossbeam
Hooks forged while glowing hot in the die.
Pull hook with proven screw connection for a force-fit connection
Can be used as an external or internal puller by repositioning the hooks.
Nitrocarburized spindle surface, wear-resistant and corrosion-resistant
The spindle remains smooth and clean – no greasing or oiling necessary.
Traverse combinable with other spindle/hook designs and lengths from the GEDORE puller kit
Interchangeable hooks available for multiple clamping depths

• 3D data available: No
• Anti-slip protection on the spindle: No
• Number of arms: 3
• Hooks can be moved parallel to each other: No
• Hook brake present: No
• Hook foot width at the usable surface c1 [mm]: 36 mm
• Hook foot diameter at the tip e1 [mm]: 6.5 mm
• Hook foot depth usable d2 [mm]: 28 mm
• Hydraulic spindle optional: 1.06/HSP2
• Hydraulic spindle present: No
• Contents (number of pieces): 1 pc.
• Retrofittable with hydraulic spindle: Yes
• Net weight [g]: 9300 g
• Net weight [kg]: 9.3 kg
• REACH registration: No
• Wrench size of operating hexagon: 27 mm
• Quick-release levers present: No
• Screws included: No
• Scale divisions available: No
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 200 mm
• Span for external skiving (max.) [mm]: 250 mm
• Span for internal skiving a2 (max.) [mm]: 400 mm
• Span for internal skiving a2 (min.) [mm]: 100 mm
• Spindle slip protection: No
• Spindle thread size: G 3/4 x 280
• Reversible arms: No
• Country of origin: Germany
• Type of use: peeling inside and out
• Customs tariff number: 82055980
• Maximum tractive force [t]: 7.5 t
