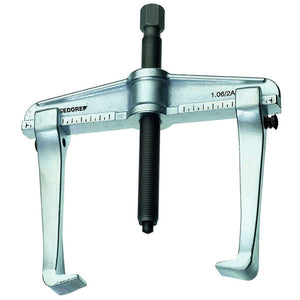

GEDORE Universal Puller, 2-arm, all-steel hook, hook brake, 210x150 mm

Robust, drop-forged design
Trigger hook forged from a single piece
With hook brake – prevents the hooks from slipping unintentionally. The hook can be moved along the crossbeam at the touch of a button.
Adjustment scale for even adjustment of the trigger hooks. Allows for a centered and force-optimized trigger pull even at the highest trigger forces.
Can be used as an external or internal puller by repositioning the hooks.
Interchangeable hooks available for multiple clamping depths

• 3D data available: No
• Anti-slip protection on the spindle: No
• Number of arms: 2
• Number of hooks: 2
• Design: 2-arm
• Hooks can be moved parallel to each other: No
• Hook brake available: Yes
• Hook foot width at the usable surface c1 [mm]: 30 mm
• Hook foot diameter at the tip e1 [mm]: 3.5 mm
• Hook foot depth usable d2 [mm]: 24 mm
• Hydraulic spindle optional: 1.06/HSP1
• Hydraulic spindle present: No
• Contents (number of pieces): 1 pc.
• Retrofittable with hydraulic spindle: Yes
• Net weight [g]: 3300 g
• Net weight [kg]: 3.3 kg
• REACH registration: No
• Wrench size of operating hexagon: 22 mm
• Quick-release levers present: No
• Screws included: No
• Scale divisions available: Yes
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 150 mm
• Span for external skiving (max.) [mm]: 210 mm
• Span for internal skiving a2 (max.) [mm]: 260 mm
• Span for internal skiving a2 (min.) [mm]: 90 mm
• Spindle slip protection: No
• Spindle pressure piece type: Tip
• Spindle thread size: G 1/2 x 210
• Spindle surface coating: Nitrocarburized
• Spindle tip replaceable: No
• Reversible arms available: Yes
• Country of origin: Germany
• Customs tariff number: 82055980
• Maximum tractive force [t]: 5 t
