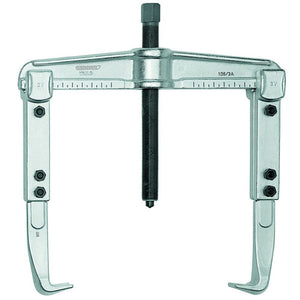

GEDORE Universal Puller 2-arm 520x400 mm

Robust, drop-forged design
Adjustment scale for even adjustment of the trigger hooks. Allows for a centered and force-optimized trigger pull even at the highest trigger forces.
Extended trigger hooks
Can be used as an external or internal puller by repositioning the hooks.
Interchangeable hooks available for multiple clamping depths
Can be retrofitted with hydraulic spindle (see table)

• 3D data available: No
• Anti-slip protection on the spindle: No
• Number of arms: 2
• Number of hooks: 2
• Design: 2-armed with extended hooks
• Maximum load on the entire puller [t]: 10 t
• Overall width [mm]: 475 mm
• Overall height [mm]: 90 mm
• Total length [mm]: 600 mm
• Hooks can be moved parallel to each other: Yes
• Hook brake present: No
• Hook foot width at the usable surface c1 [mm]: 36 mm
• Hook foot diameter at the tip e1 [mm]: 6.5 mm
• Hook foot depth usable d2 [mm]: 28 mm
• Hydraulic spindle optional: 1.06/HSP3
• Hydraulic spindle present: No
• Contents (number of pieces): 1 pc.
• Retrofittable with hydraulic spindle: Yes
• Net weight [g]: 16555 g
• Net weight [kg]: 16.4 kg
• REACH registration: No
• Wrench size of operating hexagon: 36 mm
• Quick-release lever present: No
• Screws included: Yes
• Scale divisions available: -
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 400 mm
• Span for external skiving (max.) [mm]: 520 mm
• Span for internal skiving a2 (max.) [mm]: 600 mm
• Span for internal skiving a2 (min.) [mm]: 185 mm
• Spindle slip protection: No
• Spindle pressure piece type: Tip
• Spindle thread size: G1x310mm
• Spindle thread length (usable) [mm]: 310 mm
• Spindle surface coating: Nitrocarburized
• Spindle wrench size: 36 mm
• Spindle tip replaceable: No
• Reversible arms available: Yes
• Country of origin: Germany
• Use/application: For removing drive pulleys, wheels, ball bearings, etc.
• Customs tariff number: 82055980
• Maximum tractive force [t]: 10 t
