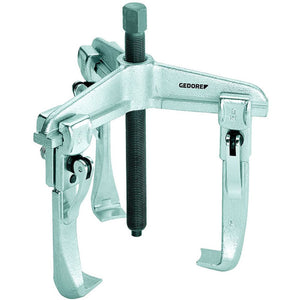

GEDORE quick-release puller, 3-arm, 130x100 mm

Industrial quality, 3 arms for optimal load distribution, tip-proof and gentle on materials
Sturdy, ergonomically shaped crossbeam
Hooks forged while glowing hot in the die.
Self-supporting hooks with T-profile for a positive-locking connection
Patented quick-adjustment system for easy, safe setting and readjustment - without tools
Can be used as an internal puller by repositioning the hooks.
Nitrocarburized spindle surface, wear-resistant and corrosion-resistant
The spindle remains smooth and clean – no greasing or oiling necessary.
Traverse combinable with other spindle/hook designs and lengths from the GEDORE puller kit

• 3D data available: No
• Anti-slip protection on the spindle: No
• Number of arms: 3
• Hooks can be moved parallel to each other: No
• Hook brake present: No
• Hook foot width at the usable surface c1 [mm]: 22 mm
• Hook foot diameter at the tip e1 [mm]: 3 mm
• Hook foot depth usable d2 [mm]: 12 mm
• Hydraulic spindle optional: -
• Hydraulic spindle present: No
• Contents (number of pieces): 1 pc.
• Retrofittable with hydraulic spindle: Yes
• Net weight [g]: 1600 g
• Net weight [kg]: 1.6 kg
• REACH registration: No
• Wrench size of operating hexagon: 17 mm
• Quick-release levers available: Yes
• Screws included: No
• Scale divisions available: No
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 100 mm
• Span for external skiving (max.) [mm]: 130 mm
• Span for internal skiving a2 (max.) [mm]: 180 mm
• Span for internal skiving a2 (min.) [mm]: 80 mm
• Spindle slip protection: No
• Spindle thread size: M 14x1.5 x 140
• Reversible arms available: Yes
• Country of origin: Germany
• Type of use: peeling inside and out
• Customs tariff number: 82055980
• Maximum tractive force [t]: 3 t
