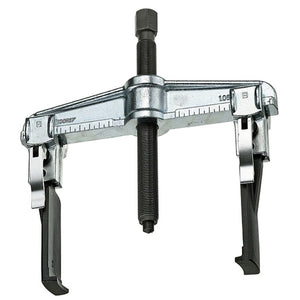

GEDORE quick-release puller, 2-arm, with slim hooks, 100x100 mm

Very narrow forged hook feet
Especially suitable for hard-to-reach places
Adjustment scale for even adjustment of the trigger hooks. Allows for a centered and force-optimized trigger pull even at the highest trigger forces.
Quick and easy adjustment and readjustment thanks to quick-release trigger hooks

• 3D data available: No
• Anti-slip protection on the spindle: No
• Number of arms: 2
• Hooks can be moved parallel to each other: No
• Hook brake present: No
• Hook foot width at the usable surface c1 [mm]: 29.8 mm
• Hook foot diameter at the tip e1 [mm]: 3.7 mm
• Total hook foot depth [mm]: 13.5 mm
• Usable hook foot depth d2 [mm]: 7.5 mm
• Hydraulic spindle optional: -
• Hydraulic spindle present: No
• Contents (number of pieces): 1 pc.
• Retrofittable with hydraulic spindle: No
• Net weight [g]: 1100 g
• Net weight [kg]: 1.1 kg
• REACH registration: No
• Wrench size of operating hexagon: 17 mm
• Quick-release levers available: Yes
• Screws included: No
• Scale divisions available: Yes
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 100 mm
• Span for external skiving (max.) [mm]: 100 mm
• Spindle slip protection: No
• Spindle thread size: M 14x1.5 x 140
• Spindle tip replaceable: No
• Reversible arms: No
• Country of origin: Germany
• Customs tariff number: 82055980
• Maximum tractive force [t]: 2 t
