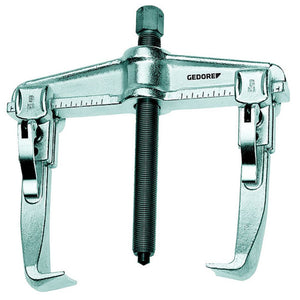

GEDORE quick-release puller, 2-arm, 160x150 mm

Proven model for safe and quick removal of discs, wheels, ball bearings, etc.
Robust, drop-forged design
Adjustment scale for even adjustment of the trigger hooks. Allows for a centered and force-optimized trigger pull even at the highest trigger forces.
Can be used as an external or internal puller by repositioning the hooks.
Interchangeable hooks for multiple clamping depths are available as accessories.
Quick and easy adjustment and readjustment thanks to quick-release trigger hooks
Can be retrofitted with a hydraulic spindle (see table)

• 3D data available: No
• Anti-slip protection on the spindle: No
• Number of arms: 2
• Hooks can be moved parallel to each other: No
• Hook brake present: No
• Hook foot width at the usable surface c1 [mm]: 30 mm
• Hook foot diameter at the tip e1 [mm]: 3.5 mm
• Hook foot depth usable d2 [mm]: 18 mm
• Hydraulic spindle optional: 1.06/HSP1
• Hydraulic spindle present: No
• Contents (number of pieces): 1 pc.
• Retrofittable with hydraulic spindle: Yes
• Net weight [g]: 3000 g
• Net weight [kg]: 3 kg
• REACH registration: No
• Wrench size of operating hexagon: 22 mm
• Quick-release levers available: Yes
• Screws included: No
• Scale divisions available: Yes
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 150 mm
• Span for external skiving (max.) [mm]: 160 mm
• Span for internal skiving a2 (max.) [mm]: 220 mm
• Span for internal skiving a2 (min.) [mm]: 80 mm
• Spindle slip protection: No
• Spindle thread size: G 1/2 x 210
• Spindle tip replaceable: No
• Reversible arms available: Yes
• Country of origin: Germany
• Customs tariff number: 82055980
• Maximum tractive force [t]: 5 t
