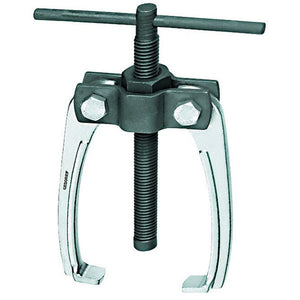

GEDORE 2-arm battery terminal puller 80x80 mm
Original price
70.-
-
Original price
70.-
Original price
70.-
70.-
-
70.-
Current price
70.-
The proven model series for cost-conscious bearing removal
Can also be used with slide hammer No. 1.35/1A
Can also be used with slide hammer No. 1.35/1A
- 3D data available: No
- Anti-slip protection on the spindle: No
- Number of arms: 2
- Swivel hook: No
- Hook brake present: No
- Hook end with slot: No
- Hook foot width at the usable surface c1 [mm]: 12 mm
- Hook foot diameter at the tip e1 [mm]: 3 mm
- Usable hook foot depth d2 [mm]: 10 mm
- Hydraulic spindle present: No
- Contents (number of pieces): 1 pc.
- Retrofittable with hydraulic spindle: No
- Net weight [g]: 240 g
- Net weight [kg]: 0.24 kg
- REACH registration: No
- Screws included: No
- Tensioning brackets available: No
- Usable clamping depth b [mm]: 80 mm
- Span for external skiving (max.) [mm]: 80 mm
- Spindle slip protection: No
- Spindle thread size: M 10 x 115
- Reversible arms: No
- Customs tariff number: 82055980
- Maximum tractive force [t]: 1 t
Technical data
| name | Value |
|---|---|
| thread | M 10 x 115 |
| brand | GEDORE |
| Usable clamping depth (mm) | 80 |
| Maximum span (mm) | 80 |
| type | 1.18/0 |
