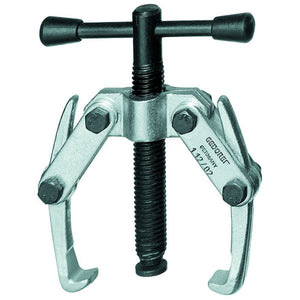

GEDORE 2-arm battery terminal puller 60x40 mm
Original price
45.-
-
Original price
45.-
Original price
45.-
45.-
-
45.-
Current price
45.-
Ideal for removing small parts such as battery terminals, discs, wheels, ball bearings, etc.
Automatic tightening of the hooks
Automatic tightening of the hooks
- 3D data available: No
- Anti-slip protection on the spindle: No
- Number of arms: 2
- Double-sided hooks: No
- Overall width [mm]: 69 mm
- Overall height [mm]: 19 mm
- Total length [mm]: 90 mm
- Swivel hook: No
- Hook brake present: No
- Hook end with slot: No
- Hook foot width at the usable surface c1 [mm]: 10 mm
- Hook foot diameter at the tip e1 [mm]: 2 mm
- Usable hook foot depth d2 [mm]: 5 mm
- Hydraulic spindle present: No
- Contents (number of pieces): 1 pc.
- Retrofittable with hydraulic spindle: No
- Net weight [g]: 147 g
- Net weight [kg]: 0.16 kg
- REACH registration: No
- Screws included: No
- Automatic pressing: Yes
- Tensioning brackets available: No
- Usable clamping depth b [mm]: 40 mm
- Span for external skiving (max.) [mm]: 60 mm
- Spindle slip protection: No
- Spindle thread size: M 10x1.5 x 60
- Reversible arms: No
- Country of origin: Germany
- Customs tariff number: 82055980
- Maximum tractive force [t]: 0.5 t
Technical data
| name | Value |
|---|---|
| thread | M 10x1.5 x 60 |
| brand | GEDORE |
| Usable clamping depth (mm) | 40 |
| Maximum span (mm) | 60 |
| type | 1.12/02 |
| Traction force (t) | 0.5 |
