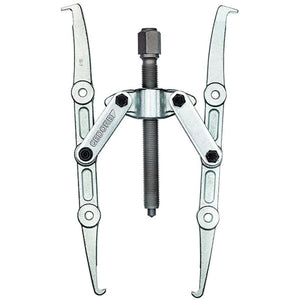

GEDORE 2-arm fan puller 150x200 mm

Particularly slim hooks, usable on both sides, with three adjustable clamping depth options
The double-sided, wide or narrow hook ends press themselves together automatically when loaded.
For use with cooling fans with 2 holes, from 10 mm hole diameter.

• 3D data available: No
• Anti-slip protection on the spindle: No
• Number of arms: 2
• Double-sided hooks: No
• Swivel hook: No
• Hook brake present: No
• Hook end with slot: No
• Hook foot width: 10 mm
• Hook foot width at the usable surface c1 [mm]: 6.6 mm
• Hook foot diameter at the tip 2: 2 mm
• Hook foot diameter at the tip e1 [mm]: 1 mm
• Total hook foot depth [mm]: 10 mm
• Total hook foot depth f2 [mm]: 16.5 mm
• Hook foot depth usable d2 [mm]: 6 mm
• Hydraulic spindle present: No
• Contents (number of pieces): 1 pc.
• Retrofittable with hydraulic spindle: No
• Net weight [g]: 900 g
• Net weight [kg]: 0.9 kg
• REACH registration: No
• Wrench size of operating hexagon: 17 mm
• Screws included: No
• Automatic pressing: Yes
• Tensioning brackets available: No
• Usable clamping depth: 100-200
• Span for external skiving (max.) [mm]: 150 mm
• Spindle slip protection: No
• Spindle thread size: M 14x1.5 x 155
• Reversible arms: No
• Country of origin: Germany
• Use/application: for cooling fans with 2 holes and a hole diameter of 10 mm or more
• Customs tariff number: 82055980
• Maximum tractive force [t]: 1 t
