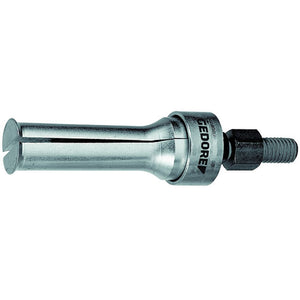

GEDORE internal extractor 8-12 mm
Original price
95.-
-
Original price
95.-
Original price
95.-
95.-
-
95.-
Current price
95.-
For extremely tightly fitting ball bearings, rings, bushings and oil seals®
Method of operation:
Insert the internal puller into the bearing and turn in the spindle. The sharp edges of the shells will press behind the part to be pulled out. Only then should you attach the counter support. Align the feet parallel to the spindle to create a rigid unit.
The design may differ from the image.
Can be used with either a slide hammer or a counter support.
Method of operation:
Insert the internal puller into the bearing and turn in the spindle. The sharp edges of the shells will press behind the part to be pulled out. Only then should you attach the counter support. Align the feet parallel to the spindle to create a rigid unit.
The design may differ from the image.
Can be used with either a slide hammer or a counter support.
- 3D data available: No
- Connection thread: M10
- Counter support: 1.36/1
- Total width [mm]: 26 mm
- Overall height [mm]: 26 mm
- Total length [mm]: 105 mm
- Slide hammer: 1.35/1A
- Contents (number of pieces): 1 pc.
- Net weight [g]: 114 g
- Net weight [kg]: 0.12 kg
- REACH registration: No
- Wrench size of operating hexagon: 10 mm
- Tensioning brackets available: No
- Spreading range (min./max.): 8-12 mm
- Reversible arms: No
- Country of origin: Germany
- Customs tariff number: 82055980
Technical data
| name | Value |
|---|---|
| Connection thread | M10 |
| Counter support | 1.36/1 |
| Slide hammer | 1.35/1A |
| brand | GEDORE |
| Spreading range (mm) | 8-12 |
| SW Actuating Hex (mm) | 10 |
| type | 1.30/1 |
