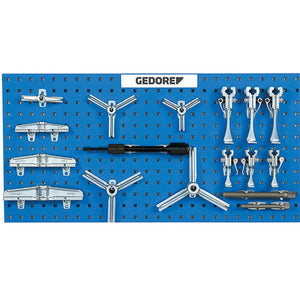

GEDORE Industrial Puller Set, Modular System
Original price
1'674.-
-
Original price
1'674.-
Original price
1'674.-
1'674.-
-
1'674.-
Current price
1'674.-
- For mounting the proven 1.06 and 1.07 models
- With this set you can mount 12 common models with quick-release hooks, including hydraulic spindle, yourself in seconds.
- readily available on a pegboard
- 3D data available: No
- Anti-slip protection on the spindle: No
- Version: including pegboard
- Hooks can be moved parallel to each other: No
- Swivel hook: No
- Hook brake present: No
- Hydraulic spindle: 1.06/HSP1
- Hydraulic spindle present: Yes
- Contents (number of pieces): 17 pieces.
- Retrofittable with hydraulic spindle: No
- Net weight [g]: 19400 g
- Net weight [kg]: 19.4 kg
- REACH registration: No
- Quick-release levers present: No
- Screws included: No
- Scale divisions available: No
- Tensioning brackets available: No
- Spindle slip protection: No
- Spindle tip replaceable: No
- Parts list (text): E-106/103 2-arm traverse 140 mm
106/1A03 Traverse 2-armed 180 mm
106/203 Traverse 2-armed 220 mm
106/2A03 Traverse 2-armed 260 mm
E-107/103 Traverse 3-armed 140 mm
107/1A03 Traverse 3-armed 180 mm
107/203 Traverse 3-armed 220 mm
107/2A03 Traverse 3-armed 260 mm
E-1.1406140 Spindle SW 17, M14x1.5, 140 mm
1.2106210 Spindle SW 22, G 1/2", 210 mm
1.06/HSP1 Grease hydraulic pressure spindle 10 t
106/A-100-E Quick-release trigger hook 100 mm (3x)
106/B-150-E Quick-release trigger hook 150 mm (3x)
1450 L tool panel empty, 987x493 mm
1500 H 1 Tool hook, angled hook end, d 4 mm
1500 H 2-13 Tool clamp d 13 mm
1500 H 3 Tool clamp 44x23-29 mm
82844 Tool clamp large base plate d 25 mm - Reversible arms: No
- Country of origin: Germany
- Customs tariff number: 82060000
Technical data
| name | Value |
|---|---|
| Weight (kg) | 19.4 |
| Contents | 17 parts. |
| brand | GEDORE |
| type | 2.30 |
