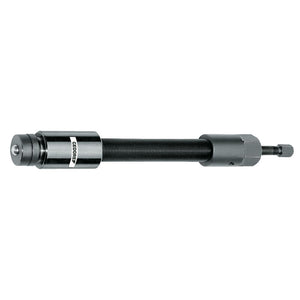

GEDORE grease hydraulic pressure spindle 10 t
Original price
566.-
-
Original price
566.-
Original price
566.-
566.-
-
566.-
Current price
566.-
For controlled and safe removal, it can be used in any puller with a suitable 1/2" thread. The pressure piece can be replaced with a tip and extended if necessary. The small pressure spindle is secured against unintentional unscrewing with an anti-rotation device.
Compressive force [Nm]: 17.0 Nm
Compressive force [Nm]: 17.0 Nm
Technical data
| name | Value |
|---|---|
| 1000 V insulated | No |
| Pressure [kN] | 100.0 kN |
| Pressure [t] | 10.0 t |
| Print piece type | ball pressure piece |
| Total length [mm] | 350 mm |
| Hub | 12 mm |
| Contents (number of pieces) | 1 |
| Head height 1 [mm] | 80 mm |
| brand | GEDORE |
| Net weight [kg] | 1.1 kg |
| Usable thread length [mm] | 135 mm |
| Wrench size 1 [mm] | 12 |
| Wrench size 2 [mm] | 32 |
| Spindle thread size | G 1/2" |
| type | 1.06/HSP1 |
| Country of origin | Brazil |
| VDE certified | No |
| Customs tariff number | 82055980 |
