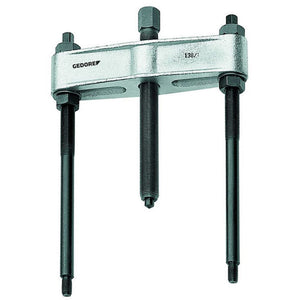

GEDORE Puller 70-215 mm
Original price
253.-
-
Original price
253.-
Original price
253.-
253.-
-
253.-
Current price
253.-
These pullers are used in conjunction with the No. 1.40 separating blades.
The pull bolts are screwed into the threaded holes of the separating blades.
The pull bolts are screwed into the threaded holes of the separating blades.
- External connection thread: M14x1.5 / M16x1.5
- for separating device: 1.40/2
- Hydraulic spindle optional: 1.06/HSP1
- Contents (number of pieces): 1 pc.
- Net weight [g]: 3400 g
- Net weight [kg]: 3.4 kg
- REACH registration: No
- Wrench size of operating hexagon: 22 mm
- Clamping range (min./max.): 70 - 215 mm
- Tensioning brackets available: No
- usable clamping depth b [mm]: 195 mm
- Span for external skiving (max.) [mm]: 215 mm
- Span for external skiving (min.) [mm]: 70 mm
- Spindle thread size: G 1/2 x 210
- Reversible arms: No
- Country of origin: Germany
- Customs tariff number: 82055980
Technical data
| name | Value |
|---|---|
| For separating device | 1.40/2 |
| thread | G 1/2 x 210 |
| brand | GEDORE |
| Clamping range (mm) | 70 - 215 |
| Usable clamping depth (mm) | 195 |
| SW Actuating Hex (mm) | 22 |
| type | 1.38/2 |
