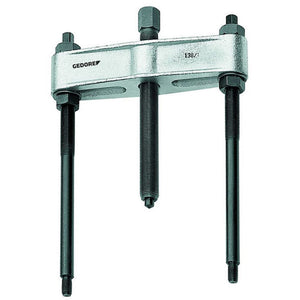

GEDORE Puller 140-440 mm
Original price
1'014.-
-
Original price
1'014.-
Original price
1'014.-
1'014.-
-
1'014.-
Current price
1'014.-
These pullers are used in conjunction with the No. 1.40 separating blades.
The pull bolts are screwed into the threaded holes of the separating blades.
The pull bolts are screwed into the threaded holes of the separating blades.
- External connection thread: M24x1.5 / M26x1.5
- for separating device: 1.40/5
- Hydraulic spindle optional: 1.06/HSP3
- Contents (number of pieces): 1 pc.
- Net weight [g]: 16600 g
- Net weight [kg]: 16.6 kg
- REACH registration: No
- Clamping range (min./max.): 140 - 440 mm
- Tensioning brackets available: No
- Usable clamping depth b [mm]: 320 mm
- Span for external skiving (max.) [mm]: 440 mm
- Span for external skiving (min.) [mm]: 140 mm
- Spindle thread size: G 1 x 360
- Reversible arms: No
- Country of origin: Germany
- Customs tariff number: 82055980
Technical data
| name | Value |
|---|---|
| For separating device | 1.40/5 |
| thread | G 1 x 360 |
| brand | GEDORE |
| Clamping range (mm) | 140 - 440 |
| Usable clamping depth (mm) | 320 |
| SW Actuating Hex (mm) | 36 |
| type | 1.38/5 |
