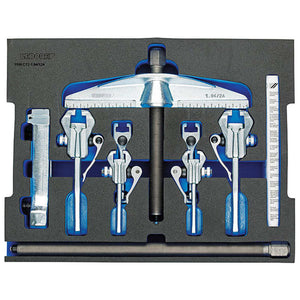

GEDORE puller set for indoor/outdoor use, in 2/2 L-BOXX 136 module

Universal internal/external puller set
Maximum load 3 and 5 t
For spans (SW) up to Ø 200 mm outside, Ø 70-260 mm inside, and spans (ST) up to 300 mm
2 additional spindles for maximum clamping depths
Drop-forged crossbeams for increased safety
Spindles with special coating that eliminate the need for greasing
On 3 out of 4 spindles, the spindle tip can be rotated (ball/tip).
Bending moment reinforced traverse No. 1.04 for higher loads

• Overall width [mm]: 310 mm
• Overall height [mm]: 90 mm
• Total length [mm]: 357 mm
• Contents (number of pieces): 1 pc.
• Content for sentences: 1.04/1A
  1.04/2A
  1.2106350KS
  1.1406200
  106/A-100-VB
  106/B-150-VB
  EI-1100 CT2-1.04/12A
• Net weight [g]: 7400 g
• Net weight [kg]: 7.4 kg
• REACH registration: No
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 300 mm
• Span for external skiving (max.) [mm]: 200 mm
• Span for internal skiving a2 (max.) [mm]: 260 mm
• Span for internal skiving a2 (min.) [mm]: 70 mm
• Parts list (text): Universal puller No. 1x 1.04/1A, 2-arm 130x100 mm
  Universal puller No. 1.04/2A 2-arm 200x150 mm
  Extension with hook brake No. 106/A-100-VB, 100 mm
  Extension with hook brake No. 106/B-150-VB, 150 mm
  Spindle no. 1.1406200 SW 17 M14x1.5 200 mm
  Spindle No. 1.2106350KS, SW 22, G 1/2", 350 mm, with ball tip
• Reversible arms: No
• Country of origin: Germany
• Customs tariff number: 82055980
• Maximum tractive force [t]: 3 and 5 t
