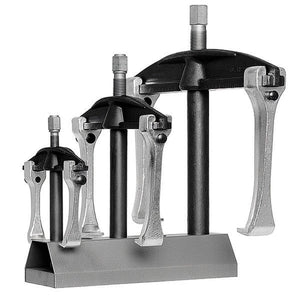

GEDORE puller set with stand 1.04/HP1A-1.04/HP3A
Original price
1'222.-
-
Original price
1'222.-
Original price
1'222.-
1'222.-
-
1'222.-
Current price
1'222.-
- Consisting of 3 pullers in different sizes
- Specially tempered crossbeam, withstands high forces, load capacity double tensile force possible
- Robust, drop-forged design
- Trigger hook forged from a single piece
- With hook brake – prevents the hooks from slipping unintentionally. The hook can be moved along the crossbeam at the touch of a button.
- Can be used as an external or internal puller by repositioning the hooks.
- Adjustment scale for even adjustment of the trigger hooks. Allows for a centered and force-optimized trigger pull even at the highest trigger forces.
- Retrofittable with hydraulic spindle
- 3D data available: No
- Anti-slip protection on the spindle: No
- Total length [mm]: 125 mm
- Hooks can be moved parallel to each other: No
- Swivel hook: No
- Hook brake available: Yes
- Hydraulic spindle present: No
- Contents (number of pieces): 3 pieces.
- Retrofittable with hydraulic spindle: Yes
- Net weight [g]: 14400 g
- Net weight [kg]: 14.4 kg
- REACH registration: No
- Quick-release lever present: No
- Screws included: No
- Scale divisions available: Yes
- Tensioning brackets available: No
- Spindle slip protection: No
- Spindle tip replaceable: No
- Parts list (text): 1.04/HP1A-B Puller HIGH POWER 2-arm 130x100 mm
1.04/HP2A-B Puller HIGH POWER 2-arm 200x150 mm
1.04/HP3A-B Puller HIGH POWER 2-arm 350x200 mm
1.04/97 Stand empty for 1.04 series - Reversible arms available: Yes
- Country of origin: Germany
- Type of use: peeling inside and out
- Customs tariff number: 82055980
Technical data
| name | Value |
|---|---|
| Weight (kg) | 14.4 |
| Contents | 3-piece set |
| Length (mm) | 125 |
| brand | GEDORE |
| type | 1.04/ST-HP-B |
