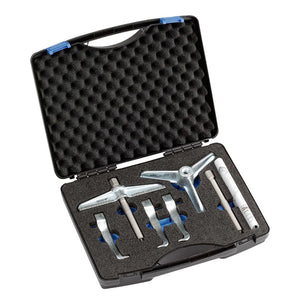

GEDORE puller set with 3 hooks, with hook brake 140x100 mm

In a plastic case
Contents: 2 spindles, one 2-arm and one 3-arm crossbeam, and 3 all-steel hooks with hook brakes.
Safety device to prevent the hooks from slipping unintentionally. The hook can be moved along the crossbar at the touch of a button.
Can be used as an external or internal puller by repositioning the hooks.
A second spindle saves working time

• 3D data available: No
• Anti-slip protection on the spindle: No
• Version: in a plastic case
• Hooks can be moved parallel to each other: Yes
• Swivel hook: No
• Hook brake available: Yes
• Hook foot width at the usable surface c1 [mm]: 22 mm
• Hook foot diameter at the tip e1 [mm]: 3 mm
• Hook foot depth usable d2 [mm]: 15 mm
• Hydraulic spindle present: No
• Contents (number of pieces): 6 pieces.
• Retrofittable with hydraulic spindle: No
• Net weight [g]: 2900 g
• Net weight [kg]: 2.9 kg
• REACH registration: No
• Wrench size of operating hexagon: 17 mm
• Quick-release levers present: No
• Screws included: No
• Scale divisions available: No
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 100 mm
• Span for external skiving (max.) [mm]: 140 mm
• Spindle slip protection: No
• Spindle thread size: M14x1.5 x 140
• Spindle tip replaceable: No
• Parts list (text): 106/1A03 Traverse 2-arm 180 mm
  107/1A03 Traverse 3-armed 180 mm
  106/A-100-B pulling hook all-steel, hook brake 100 mm (3x)
  E-1.1406140 Spindle SW 17, M14x1.5, 140 mm
  107/1A99-B Plastic case with foam insert for 1.07/K-1A-B
• Reversible arms: No
• Country of origin: Germany
• Type of use: inside and outside peeling
• Customs tariff number: 82055980
• Maximum tractive force [t]: 3.0 t
