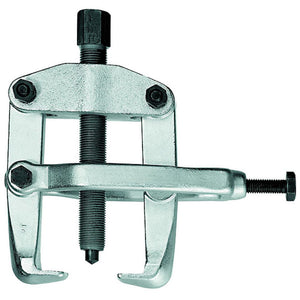

GEDORE puller with clamping bracket 150x140 mm

This puller is primarily used for removing steering levers from cars and trucks.
The clamping bracket presses the hooks firmly behind the part to be removed, preventing the puller from slipping.

• 3D data available: No
• Anti-slip protection on the spindle: No
• Number of arms: 2
• Swivel hook: No
• Hook brake present: No
• Hook end with slot: No
• Hook foot width at the usable surface c1 [mm]: 30 mm
• Hook foot diameter at the tip e1 [mm]: 3.5 mm
• Hook foot depth usable d2 [mm]: 18 mm
• Hydraulic spindle optional: 1.06/HSP1
• Hydraulic spindle present: No
• Contents (number of pieces): 1 pc.
• Retrofittable with hydraulic spindle: No
• Net weight [g]: 3400 g
• Net weight [kg]: 3.4 kg
• REACH registration: No
• Wrench size of operating hexagon: 22 mm
• Screws included: No
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 140 mm
• Span for external skiving (max.) [mm]: 150 mm
• Spindle slip protection: No
• Spindle thread size: G 1/2 x 175
• Reversible arms: No
• Country of origin: Germany
• Customs tariff number: 82055980
• Maximum tractive force [t]: 7.5 t
