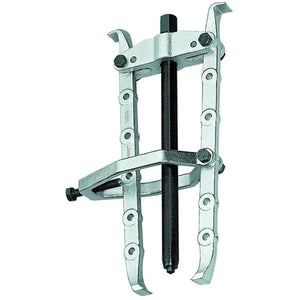

GEDORE puller with clamping bracket 110x170 mm

Double-sided hooks
Especially suitable for separating and peeling off flush-fitting parts
Particularly economical due to the multiple adjustment options for the clamping depth.

• 3D data available: No
• Anti-slip protection on the spindle: No
• Number of arms: 2
• Double-sided hooks: Yes
• Swivel hook: No
• Hook brake present: No
• Hook end with slot: No
• Hook foot width at the usable surface c1 [mm]: 25 mm
• Hook foot diameter at the tip e1 [mm]: 3.5 mm
• Hook foot depth usable d2 [mm]: 14 mm
• Hydraulic spindle optional: -
• Hydraulic spindle present: No
• Contents (number of pieces): 1 pc.
• Retrofittable with hydraulic spindle: No
• Net weight [g]: 2200 g
• Net weight [kg]: 2.2 kg
• REACH registration: No
• Wrench size of operating hexagon: 19 mm
• Screws included: No
• Automatic pressing: No
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 170 mm
• Span for external skiving (max.) [mm]: 110 mm
• Spindle slip protection: No
• Spindle thread size: M 18x1.5 x 200
• Reversible arms: No
• Country of origin: Germany
• Customs tariff number: 82055980
• Maximum tractive force [t]: 5 t
