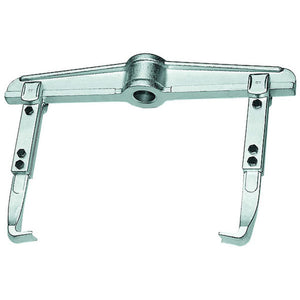

GEDORE puller for hydraulic tool 1.50, 520x200 mm

For quick and gentle removal of discs, wheels, ball bearings, etc.
Robust design for high compressive strength and flexural strength
Can be used as an external or internal puller by repositioning the hooks.
The clamping depth can be increased both by using pull-off hooks of special length and by extensions.

• 3D data available: No
• Anti-slip protection on the spindle: No
• Number of arms: 2
• Hooks can be moved parallel to each other: No
• Hook brake present: No
• Hook foot width at the usable surface c1 [mm]: 36 mm
• Hook foot diameter at the tip e1 [mm]: 6.5 mm
• Hook foot depth usable d2 [mm]: 28 mm
• Hydraulic spindle present: No
• Contents (number of pieces): 1 pc.
• Retrofittable with hydraulic spindle: No
• Net weight [g]: 11000 g
• Net weight [kg]: 11 kg
• REACH registration: No
• Quick-release levers present: No
• Screws included: No
• Scale divisions available: No
• Tensioning brackets available: No
• Usable clamping depth b [mm]: 200 mm
• Span for external skiving (max.) [mm]: 520 mm
• Span for internal skiving a2 (max.) [mm]: 600 mm
• Span for internal skiving a2 (min.) [mm]: 185 mm
• Spindle slip protection: No
• Spindle tip replaceable: No
• Reversible arms: No
• Country of origin: Germany
• Type of use: peeling inside and out
• Customs tariff number: 82055980
• Maximum tractive force [t]: 10 t
