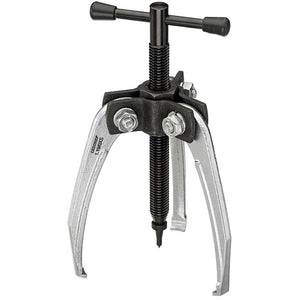

GEDORE puller 3-arm XS hook 50x70 mm
Original price
130.-
-
Original price
130.-
Original price
130.-
130.-
-
130.-
Current price
130.-
Very narrow forged hooks
Especially suitable for hard-to-reach spaces, e.g. in the electric motor area.
Especially suitable for hard-to-reach spaces, e.g. in the electric motor area.
- 3D data available: No
- Anti-slip protection on the spindle: No
- Number of arms: 3
- Double-sided hooks: No
- Hooks can be moved parallel to each other: No
- Swivel hook: No
- Hook brake present: No
- Hook end with slot: No
- Hook foot width at the usable surface c1 [mm]: 8 mm
- Hook foot diameter at the tip e1 [mm]: 2 mm
- Usable hook foot depth d2 [mm]: 3 mm
- Hydraulic spindle present: No
- Contents (number of pieces): 1 pc.
- Retrofittable with hydraulic spindle: No
- Net weight [g]: 300 g
- Net weight [kg]: 0.3 kg
- REACH registration: No
- Quick-release lever present: No
- Screws included: No
- Automatic pressing: No
- Tensioning brackets available: No
- usable clamping depth b [mm]: 70 mm
- Span for external skiving (max.) [mm]: 50 mm
- Spindle slip protection: No
- Spindle thread size: M 10x1.5 x 100
- Reversible arms: No
- Customs tariff number: 82055980
- Maximum tractive force [t]: 0.8 t
Technical data
| name | Value |
|---|---|
| thread | M 10x1.5 x 100 |
| brand | GEDORE |
| Usable clamping depth (mm) | 70 |
| Maximum span (mm) | 50 |
| type | 1.19/0XS |
| Traction force (t) | 0.8 |
