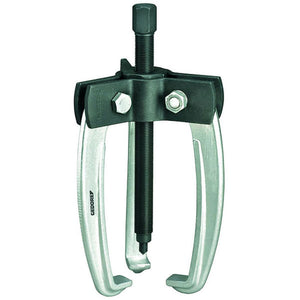

GEDORE 3-arm puller 160x140 mm
Original price
217.-
-
Original price
217.-
Original price
217.-
217.-
-
217.-
Current price
217.-
The proven model series for cost-conscious bearing removal
- Number of arms: 3
- Hook foot width at the usable surface c1 [mm]: 21 mm
- Hook foot diameter at the tip e1 [mm]: 6.5 mm
- Hook foot depth usable d2 [mm]: 20 mm
- Hydraulic spindle optional: -
- Contents (number of pieces): 1 pc.
- Net weight [g]: 2700 g
- Net weight [kg]: 2.7 kg
- Wrench size of operating hexagon: 19 mm
- Usable clamping depth b [mm]: 140 mm
- Span for external skiving (max.) [mm]: 160 mm
- Spindle thread size: M 18x1.5 x 215
- Customs tariff number: 82055980
- Maximum tractive force [t]: 3 t
Technical data
| name | Value |
|---|---|
| thread | M 18x1.5 x 215 |
| brand | GEDORE |
| Usable clamping depth (mm) | 140 |
| Maximum span (mm) | 160 |
| SW Actuating Hex (mm) | 19 |
| type | 1.19/2 |
