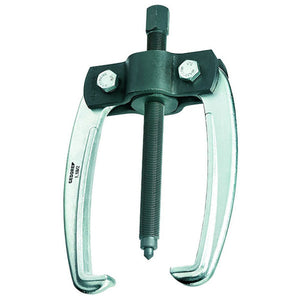

GEDORE 2-arm puller 110x110 mm
Original price
88.-
-
Original price
88.-
Original price
88.-
88.-
-
88.-
Current price
88.-
The proven model series for cost-conscious bearing removal
- 3D data available: No
- Anti-slip protection on the spindle: No
- Number of arms: 2
- Swivel hook: No
- Hook brake present: No
- Hook end with slot: No
- Hook foot width at the usable surface c1 [mm]: 17 mm
- Hook foot diameter at the tip e1 [mm]: 5 mm
- Hook foot depth usable d2 [mm]: 18 mm
- Hydraulic spindle optional: -
- Hydraulic spindle present: No
- Contents (number of pieces): 1 pc.
- Retrofittable with hydraulic spindle: No
- Net weight [g]: 1000 g
- Net weight [kg]: 1 kg
- REACH registration: No
- Wrench size of operating hexagon: 17 mm
- Screws included: No
- Tensioning brackets available: No
- Usable clamping depth b [mm]: 110 mm
- Span for external skiving (max.) [mm]: 110 mm
- Spindle slip protection: No
- Spindle thread size: M 14x1.5 x 163
- Reversible arms: No
- Customs tariff number: 82055980
- Maximum tractive force [t]: 2 t
Technical data
| name | Value |
|---|---|
| thread | M 14x1.5 x 163 |
| brand | GEDORE |
| Usable clamping depth (mm) | 110 |
| Maximum span (mm) | 110 |
| SW Actuating Hex (mm) | 17 |
| type | 1.18/1 |
| Traction force (t) | 2 |
